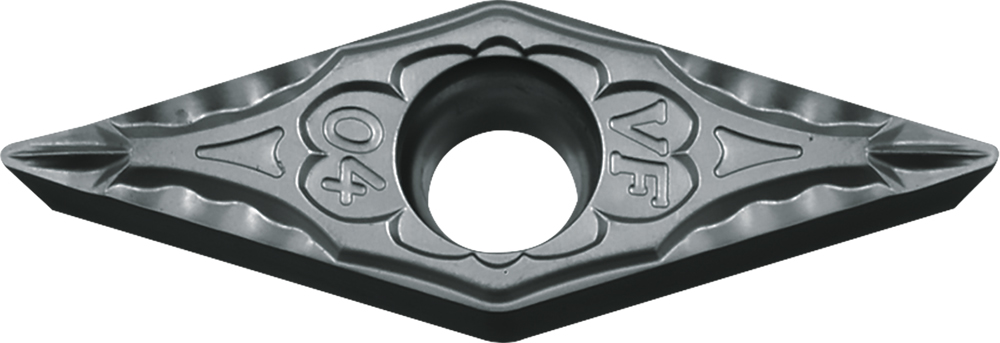

Kyocera VBMT 3305VF PR930 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT03835
$41.64
Kyocera VBMT 3305VF PR930 Grade PVD Carbide, 5 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel and (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
35 degrees
Thickness
3/16 Inch
Style
VBMT
Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
3305
Old Material Number
8822153
ANSI Part Number
VBMT3305VFPR930
ISO Part Number
VBMT160402VF
Rake
Positive
Material Group / Grade
PR930
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
4.76
Chipbreaker
VF
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
Kyocera VBMT 3305VF PR930 Grade PVD Carbide, Indexable Turning Insert
$41.64
