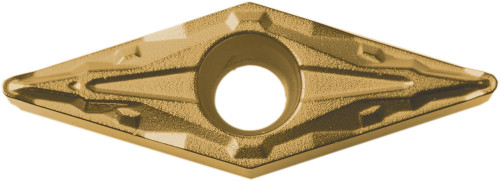

Kyocera VBMT 331PP CA515 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAB07475
$35.83
Kyocera VBMT 331PP CA515 Grade CVD Carbide, 5 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
35 degrees
Thickness
3/16 Inch
Style
VBMT
Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
331
Old Material Number
8843932
ANSI Part Number
VBMT331PPCA515
ISO Part Number
VBMT160404PP
Rake
Positive
Material Group / Grade
CA515
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Thickness (Metric)
4.76
Chipbreaker
PP
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PP_PQ_Chipbreakers_Turning_Kyocera.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
