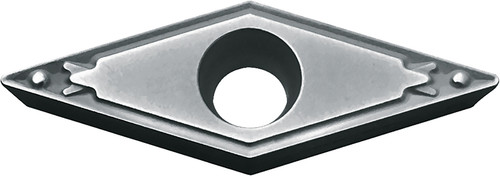

Kyocera VBMT 333HQ PR1725 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM40206
$41.64
Kyocera VBMT333HQ PR1725 Grade PVD Carbide, 5 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
3/64 Inch
Included Angle
35 degrees
Thickness
3/16 Inch
Style
VBMT
Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
333
Old Material Number
8865317
ANSI Part Number
VBMT333HQPR1725
ISO Part Number
VBMT160412HQ
Rake
Positive
Material Group / Grade
PR1725
Corner Radius (Metric)
1.20
Number of Cutting Edges
2
Thickness (Metric)
4.76
Chipbreaker
HQ
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PR1705.pdf
Kyocera VBMT 333HQ PR1725 Grade PVD Carbide, Indexable Turning Insert
$41.64
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
