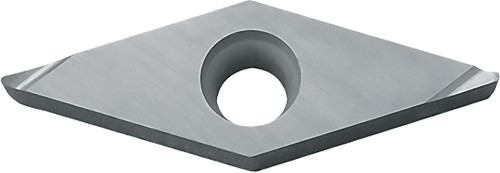

Kyocera Turning Insert VCET2205MLF PR1725: TLM00467

Kyocera Turning Insert VCET2205MLF PR1725, manufacturer part number TLM00467.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8863714; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 2205; Hand Direction: Left; Insert Style: VCET; Insert Shape: 35 Degree Diamond; ANSI Designation: VCET2205MLFPR1725; Chip Breaker Type: F; ISO Designation: VCET110302ML-F; Included Angle: 35 degrees; Machining Operations: Copying, External Turning, Facing, Undercutting; Insert Grade: PR1725; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO PLUS. Series: ISOI. Unit of measure: Inch.
