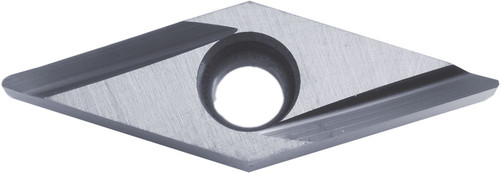

Kyocera Turning Insert VCET2205MLY PR1535: TLC58676

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC58676
$32.26

Kyocera ISOI turning insert for stainless steel and high-temp alloys, 1/4 in (6.35 mm) IC, 35 degree diamond shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, left hand. Carbide, MEGACOAT NANO (PVD) coating. Manufacturer part number TLC58676.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Carbide
Coating/Finish
MEGACOAT NANO
IC Size (Fractional)
1/4
Included Angle
35
Corner Radius (Decimal)
0.0080
Insert Style
VCET
Insert Thickness (Fractional)
1/8
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
2205
Insert Thickness (Metric)
3.18
Machining Operations
Copying, External Turning, Facing, Undercutting
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Insert Grade
PR1535
Chip Breaker Type
Y
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
ISO Designation
VCET110302ML-Y
Workpiece Material
Stainless Steel, High-Temp Alloy
ANSI Designation
VCET2205MLYPR1535
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR1535_for_Turning.pdf
Coating Process
PVD
