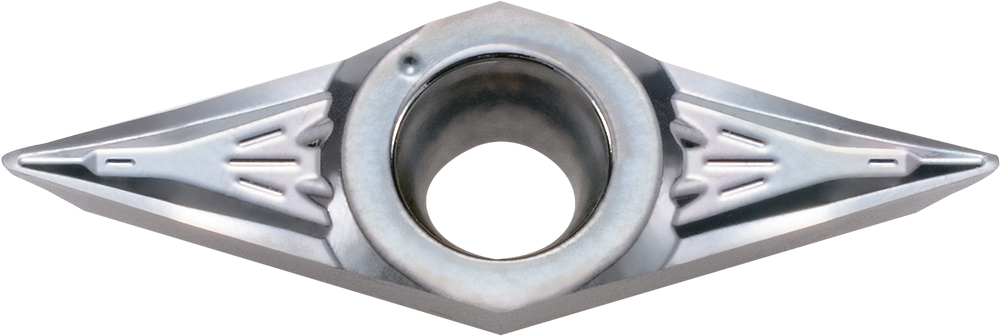

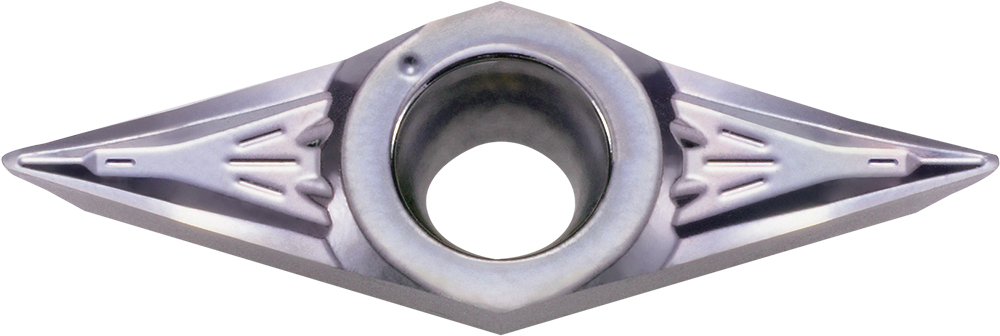

Kyocera VCGT 2205MFPSKS PR120S Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLW00148
$39.31
Kyocera VCGT2205MFPSKS PR120S Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (S) Heat-Resistant Alloy, (S) Titanium Alloy, and (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
Included Angle
35 degrees
Thickness
1/8 Inch
Style
VCGT
Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
2205
ANSI Part Number
VCGT2205MFPSKSPR120S
ISO Part Number
VCGT110302MFP-SKS
Rake
Positive
Material Group / Grade
PR120S
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
3.18
Chipbreaker
SKS
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PR115S_PR120S_PVD_Coated_Carbide.pdf
