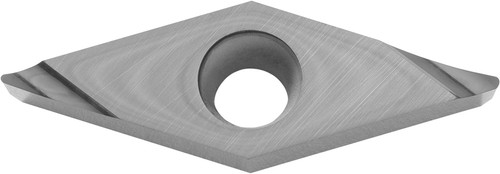

Kyocera VCGT 332RA3 KW10 Grade Uncoated Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE04632
$44.92
Kyocera VCGT 332RA3 KW10 Grade Uncoated Carbide, 7 Degree, Diamond, Positive Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy and (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Corner Radius
1/32 Inch
Included Angle
35 degrees
Thickness
3/16 Inch
Style
VCGT
Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
332
Old Material Number
8805913
ANSI Part Number
VCGT332RA3KW10
ISO Part Number
VCGT160408R-A3
Rake
Positive
Material Group / Grade
KW10
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Thickness (Metric)
4.76
Chipbreaker
A3
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
Kyocera VCGT 332RA3 KW10 Grade Uncoated Carbide, Indexable Turning Insert
$44.92
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
