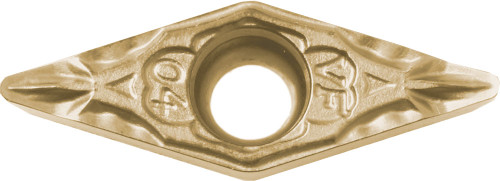

Kyocera Turning Insert VCMT15151VF CA525: TAC07506

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAC07506
$25.49

Kyocera ISOI turning insert for steel, 3/16 in (4.76 mm) IC, 35 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAC07506.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/32
Corner Radius (Fractional)
1/64
Included Angle
35
ANSI Designation
VCMT15151VFCA525
Insert Style
VCMT
Insert Thickness (Metric)
2.38
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
15151
Machining Operations
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Insert Grade
CA525
Rake
Positive
IC Size (Metric)
4.76
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Workpiece Material
Steel
ISO Designation
VCMT080204VF
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
3/16
Coating Process
CVD
Chip Breaker Type
VF
Pack quantity
10
