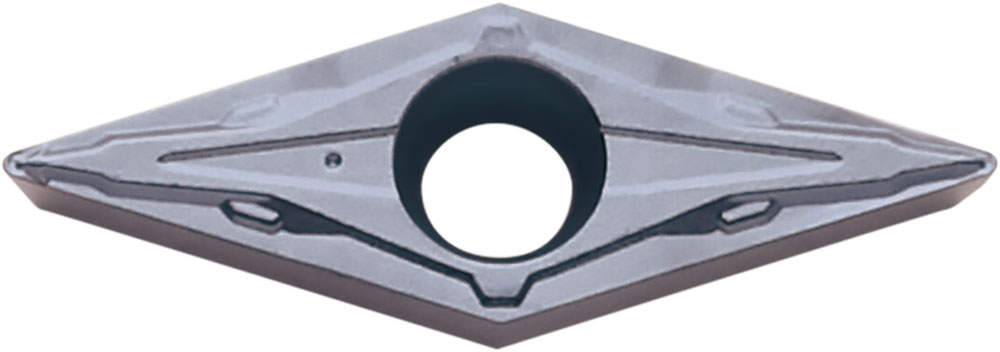

Kyocera VCMT 331PP PR1225 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKB07702
$29.35
Kyocera VCMT 331PP PR1225 Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (M) Stainless Steel and (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Corner Radius
1/64 Inch
Included Angle
35 degrees
Thickness
3/16 Inch
Style
VCMT
Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
331
Old Material Number
8844141
ANSI Part Number
VCMT331PPPR1225
ISO Part Number
VCMT160404PP
Rake
Positive
Material Group / Grade
PR1225
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Thickness (Metric)
4.76
Chipbreaker
PP
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PP_PQ_Chipbreakers_Turning_Kyocera.pdf
