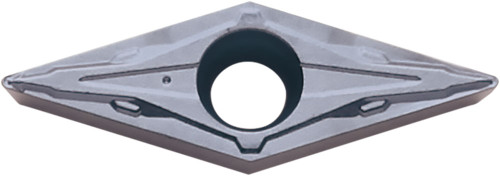

Kyocera Turning Insert VCMT332PP PV720: TLD07703
SKU: KYP-TLD07703
Kyocera Turning Insert VCMT332PP PR1225, manufacturer part number TKB07703.
Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8844142; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 332; Hand Direction: Neutral; Insert Style: VCMT; Insert Shape: 35 Degree Diamond; ANSI Designation: VCMT332PPPR1225; Chip Breaker Type: PP; ISO Designation: VCMT160408PP; Included Angle: 35 degrees; Machining Operations: Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting; Insert Grade: PR1225; Workpiece Material: Stainless Steel, Steel; Coating Process: PVD.
Material: Carbide. Coating/Finish: MEGACOAT. Series: ISOI. Unit of measure: Inch.
