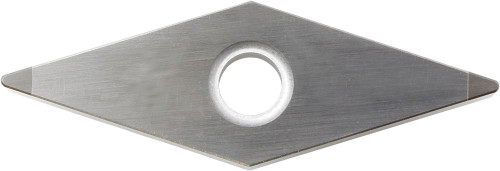

Kyocera Turning Insert VNGA331T00515ME KBN70M: TBJ06007

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBJ06007
$97.92

Kyocera Turning Insert VNGA331T00515ME KBN70M, manufacturer part number TBJ06007.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8828605; Rake: Negative; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Heavy Interruption; Insert Size: 331; Hand Direction: Neutral; Insert Style: VNGA; Insert Shape: 35 Degree Diamond; ANSI Designation: VNGA331T00515MEKBN70M; ISO Designation: VNGA160404T01215ME; Included Angle: 35 degrees; Machining Operations: Copying, External Turning, Facing, Undercutting; Insert Grade: KBN70M; Coating Process: PVD.

Material: CBN. Coating/Finish: MEGACOAT. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/64
Included Angle
35
ANSI Designation
VNGA331T00515MEKBN70M
Insert Style
VNGA
Machining Operations
Copying, External Turning, Facing, Undercutting
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
331
Old Material Number
8828605
Insert Grade
KBN70M
Coating Process
PVD
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Heavy Interruption
IC Size (Metric)
9.525
ISO Designation
VNGA160404T01215ME
IC Size (Fractional)
3/8
