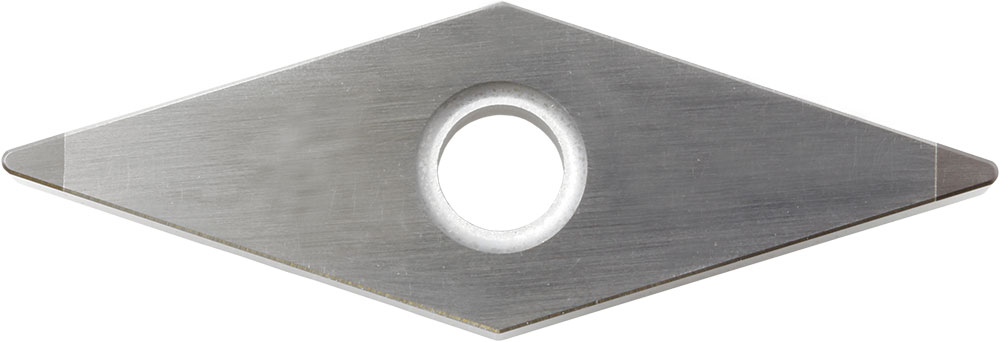

Kyocera VNGA 332S00525ME KBN25M Grade CBN, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBZ06008
$97.92
Kyocera VNGA 332S00525ME KBN25M Grade CBN, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (H) Hardened Materials

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
CBN
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Corner Radius
1/32 Inch
Included Angle
35 degrees
Thickness
3/16 Inch
Style
VNGA
Application
Copying, External Turning, Facing, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
332
Old Material Number
8825982
ANSI Part Number
VNGA332S00525MEKBN25M
ISO Part Number
VNGA160408S01225ME
Rake
Negative
Material Group / Grade
KBN25M
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Thickness (Metric)
4.76
Cutting Range
Medium
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
