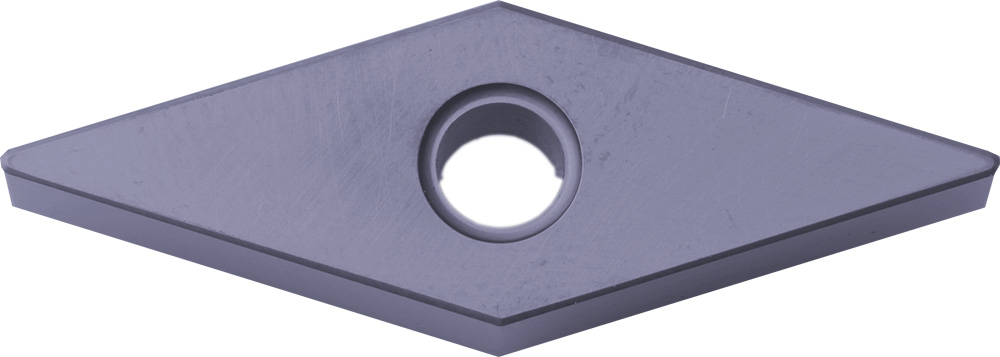

Kyocera VNGA 333T00825 A65 Grade Uncoated Ceramic, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TCR61073
$43.66
Kyocera VNGA 333T00825 A65 Grade Uncoated Ceramic, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (K) Gray Cast Iron, (H) Hardened Materials

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Ceramic
Coating/Finish
Uncoated
Primary Workpiece Material
(K) Gray Cast Iron|(H) Hardened Materials
Corner Radius
3/64 Inch
Included Angle
35 degrees
Thickness
3/16 Inch
Style
VNGA
Application
Copying, External Turning, Facing, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
333
Old Material Number
8803799
ANSI Part Number
VNGA333T00825A65
ISO Part Number
VNGA160412T02025
Rake
Negative
Material Group / Grade
A65
Corner Radius (Metric)
1.20
Number of Cutting Edges
4
Thickness (Metric)
4.76
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
