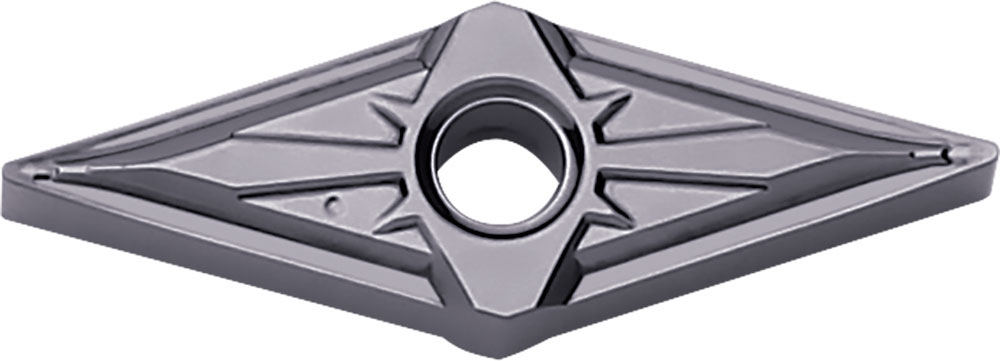

Kyocera VNGG 3305MFPSK PR115S Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLV00121
$36.80
Kyocera VNGG 3305MFPSK PR115S Grade PVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (S) Heat-Resistant Alloy, (S) Titanium Alloy, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
Included Angle
35 degrees
Thickness
3/16 Inch
Style
VNGG
Application
Copying, External Turning, Facing, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
3305
ANSI Part Number
VNGG3305MFPSKPR115S
ISO Part Number
VNGG160402MFP-SK
Rake
Negative
Material Group / Grade
PR115S
Corner Radius (Metric)
0.20
Number of Cutting Edges
4
Thickness (Metric)
4.76
Chipbreaker
SK
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PR115S_PR120S_PVD_Coated_Carbide.pdf
