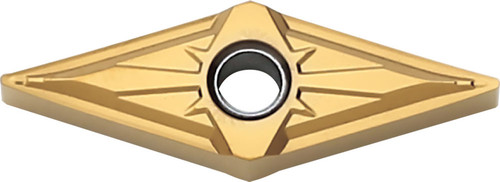

Kyocera Turning Insert VNGG3305MSK PV730: TLP00498

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLP00498
$44.85

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 35 degree diamond shape, negative rake, 4 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Cermet, TiAlN/TiN (PVD) coating. Manufacturer part number TLP00498.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiAlN/TiN
Insert Thickness (Fractional)
3/16
Included Angle
35
Corner Radius (Decimal)
0.0080
Insert Style
VNGG
Insert Thickness (Metric)
4.76
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3305
Machining Operations
Copying, External Turning, Facing, Undercutting
Insert Grade
PV730
Rake
Negative
IC Size (Metric)
9.525
Corner Radius (Metric)
0.20
Number of Cutting Edges
4
Workpiece Material
Steel
ISO Designation
VNGG160402M-SK
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Heavy Interruption
IC Size (Fractional)
3/8
ANSI Designation
VNGG3305MSKPV730
Chip Breaker Type
SK
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
Coating Process
PVD
