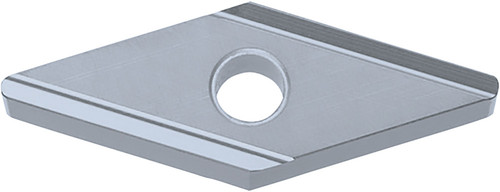

Kyocera Turning Insert VNGG3305R TN60: TSJ03510

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ03510
$37.33

Kyocera Turning Insert VNGG3305R TN60, manufacturer part number TSJ03510.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8808043; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Medium; Usage Classification: Continuous; Insert Size: 3305; Hand Direction: Right; Insert Style: VNGG; Insert Shape: 35 Degree Diamond; ANSI Designation: VNGG3305RTN60; ISO Designation: VNGG160402R; Included Angle: 35 degrees; Machining Operations: Copying, External Turning, Facing, Undercutting; Insert Grade: TN60; Workpiece Material: Steel.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Fractional)
3/16
Included Angle
35
Corner Radius (Decimal)
0.0080
Insert Style
VNGG
Insert Thickness (Metric)
4.76
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3305
Old Material Number
8808043
Machining Operations
Copying, External Turning, Facing, Undercutting
Insert Grade
TN60
Rake
Negative
IC Size (Metric)
9.525
Corner Radius (Metric)
0.20
Number of Cutting Edges
4
Workpiece Material
Steel
Cutting Range
Medium
Usage Classification
Continuous
IC Size (Fractional)
3/8
ANSI Designation
VNGG3305RTN60
ISO Designation
VNGG160402R
Pack quantity
10
