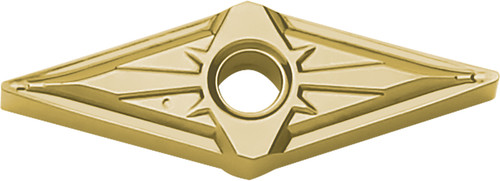

Kyocera Turning Insert VNGG331MFPSK PV730: TLP00501

Kyocera Turning Insert VNGG331MFPSK PV730, manufacturer part number TLP00501.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8866259; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Heavy Interruption; Insert Size: 331; Hand Direction: Neutral; Insert Style: VNGG; Insert Shape: 35 Degree Diamond; ANSI Designation: VNGG331MFPSKPV730; Chip Breaker Type: SK; ISO Designation: VNGG160404MFP-SK; Included Angle: 35 degrees; Machining Operations: Copying, External Turning, Facing, Undercutting; Insert Grade: PV730; Workpiece Material: Steel; Coating Process: PVD.

Material: Cermet. Coating/Finish: TiAlN/TiN. Series: ISOI. Unit of measure: Inch.
