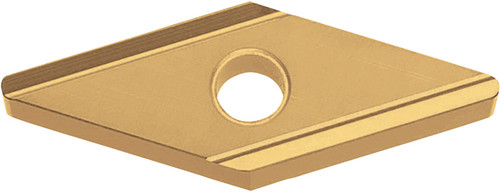

Kyocera VNGG 332L PV720 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD07754
$44.85
Kyocera VNGG 332L PV720 Grade PVD Cermet, 0 Degree, Diamond, Negative Rake Angle, Left-Hand Turning Insert for Light Interruption and Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/32 Inch
Included Angle
35 degrees
Thickness
3/16 Inch
Style
VNGG
Application
Copying, External Turning, Facing, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
332
Old Material Number
8843398
ANSI Part Number
VNGG332LPV720
ISO Part Number
VNGG160408L
Rake
Negative
Material Group / Grade
PV720
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Thickness (Metric)
4.76
Cutting Range
Medium
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
