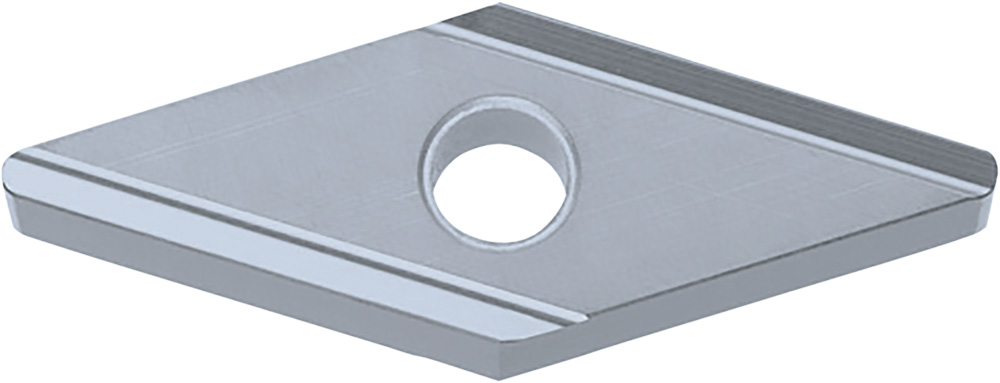

Kyocera Turning Insert VNGG332R PV710: TLF07755

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLF07755
$42.72

Kyocera Turning Insert VNGG332R PV710, manufacturer part number TLF07755.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8847728; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Medium; Usage Classification: Continuous; Insert Size: 332; Hand Direction: Right; Insert Style: VNGG; Insert Shape: 35 Degree Diamond; ANSI Designation: VNGG332RPV710; ISO Designation: VNGG160408R; Included Angle: 35 degrees; Machining Operations: Copying, External Turning, Facing, Undercutting; Insert Grade: PV710; Workpiece Material: Steel; Coating Process: PVD.

Material: Cermet. Coating/Finish: TiCN (MEGACOAT NANO). Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
TiCN (MEGACOAT NANO)
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/32
Included Angle
35
ANSI Designation
VNGG332RPV710
Insert Style
VNGG
Machining Operations
Copying, External Turning, Facing, Undercutting
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
332
Old Material Number
8847728
Insert Grade
PV710
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Coating Process
PVD
Cutting Range
Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
ISO Designation
VNGG160408R
IC Size (Fractional)
3/8
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
