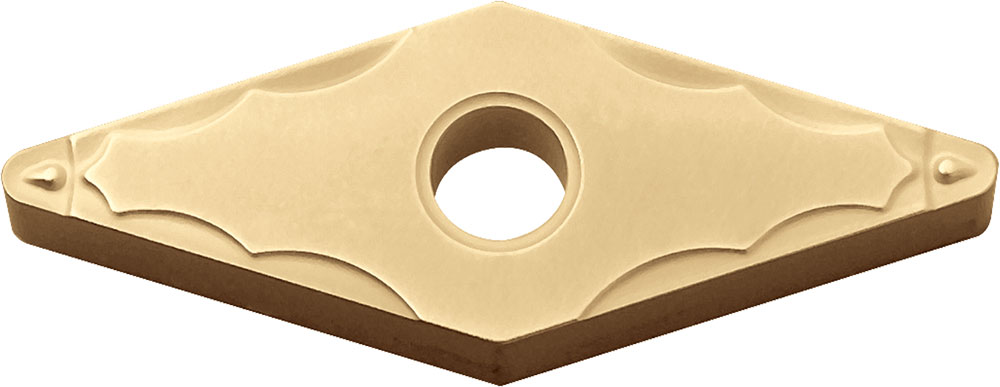

Kyocera Turning Insert VNMG3305GP CA125P: TMK00252

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMK00252
$27.07

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 35 degree diamond shape, negative rake, 4 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TMK00252.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Included Angle
35
Corner Radius (Decimal)
0.0080
Insert Style
VNMG
Insert Thickness (Metric)
4.76
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3305
Machining Operations
Copying, External Turning, Facing, Undercutting
Insert Grade
CA125P
Rake
Negative
IC Size (Metric)
9.525
Corner Radius (Metric)
0.20
Number of Cutting Edges
4
Workpiece Material
Steel
ISO Designation
VNMG160402GP
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
3/8
ANSI Designation
VNMG3305GPCA125P
Chip Breaker Type
GP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
Coating Process
CVD
