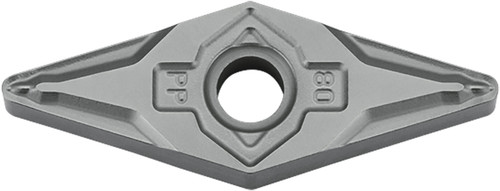

Kyocera VNMG 3305PP TN610 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS07861
$26.53
Kyocera VNMG 3305PP TN610 Grade Uncoated Cermet, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
35 degrees
Thickness
3/16 Inch
Style
VNMG
Application
Copying, External Turning, Facing, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
3305
Old Material Number
8847117
ANSI Part Number
VNMG3305PPTN610
ISO Part Number
VNMG160402PP
Rake
Negative
Material Group / Grade
TN610
Corner Radius (Metric)
0.20
Number of Cutting Edges
4
Thickness (Metric)
4.76
Chipbreaker
PP
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PP_PQ_Chipbreakers_Turning_Kyocera.pdf
