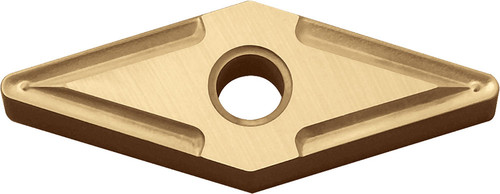

Kyocera Turning Insert VNMG331 CA6525: TJV07550

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJV07550
$27.07

Kyocera ISOI turning insert for stainless steel, 3/8 in (9.525 mm) IC, 35 degree diamond shape, negative rake, 4 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TJV07550.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/64
Included Angle
35
ANSI Designation
VNMG331CA6525
Insert Style
VNMG
Machining Operations
Copying, External Turning, Facing, Undercutting
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
331
Secondary Workpiece Material
High-Temp Alloy
Insert Grade
CA6525
Workpiece Material
Stainless Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Coating Process
CVD
Cutting Range
Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
ISO Designation
VNMG160404
IC Size (Fractional)
3/8
Pack quantity
10
