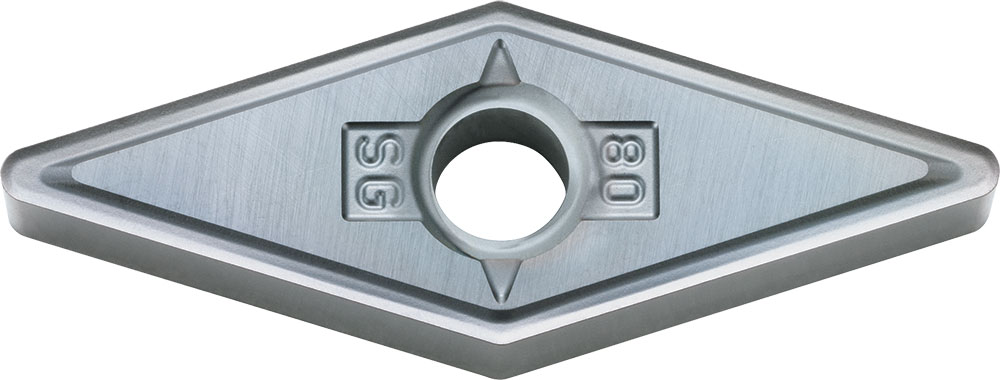

Kyocera VNMG 331SG PR120S Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLW00094
$28.71
Kyocera VNMG 331SG PR120S Grade PVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Roughing in (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(S) Heat-Resistant Alloy
Corner Radius
1/64 Inch
Included Angle
35 degrees
Thickness
3/16 Inch
Style
VNMG
Application
Copying, External Turning, Facing, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
331
ANSI Part Number
VNMG331SGPR120S
ISO Part Number
VNMG160404SG
Rake
Negative
Material Group / Grade
PR120S
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Thickness (Metric)
4.76
Chipbreaker
SG
Cutting Range
Roughing
Usage Classification
Continuous
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PR115S_PR120S_PVD_Coated_Carbide.pdf
