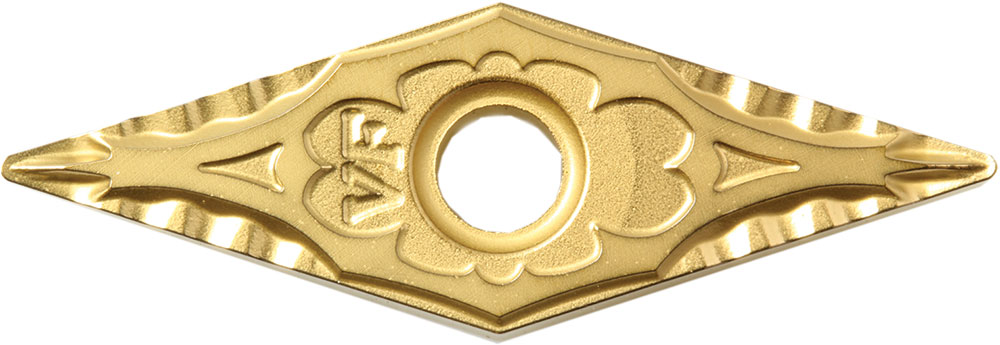

Kyocera Turning Insert VNMG331VF CA530: TAD07650

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAD07650
$27.07

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 35 degree diamond shape, negative rake, 4 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAD07650.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/64
Included Angle
35
ANSI Designation
VNMG331VFCA530
Insert Style
VNMG
Machining Operations
Copying, External Turning, Facing, Undercutting
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
331
Insert Grade
CA530
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Coating Process
CVD
IC Size (Fractional)
3/8
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Heavy Interruption
IC Size (Metric)
9.525
Chip Breaker Type
VF
ISO Designation
VNMG160404VF
Pack quantity
10
