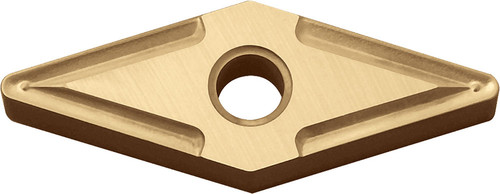

Kyocera VNMG 332 CA6515 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJU07551
$27.07
Kyocera VNMG 332 CA6515 Grade CVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Roughing in (M) Stainless Steel and (S) Heat-Resistant Alloy

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/32
Included Angle
35
ANSI Designation
VNMG332CA6515
Insert Style
VNMG
Machining Operations
Copying, External Turning, Facing, Undercutting
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
332
Old Material Number
8822328
Insert Grade
CA6515
Workpiece Material
Stainless Steel, High-Temp Alloy
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Coating Process
CVD
Cutting Range
Roughing
Usage Classification
Continuous
IC Size (Metric)
9.525
ISO Designation
VNMG160408
IC Size (Fractional)
3/8
Pack quantity
10
