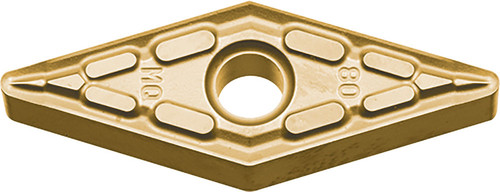

Kyocera Turning Insert VNMG332MQ CA6525: TJV07627

Kyocera Turning Insert VNMG332MQ CA6525, manufacturer part number TJV07627.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8825524; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 332; Hand Direction: Neutral; Insert Style: VNMG; Insert Shape: 35 Degree Diamond; ANSI Designation: VNMG332MQCA6525; Chip Breaker Type: MQ; ISO Designation: VNMG160408MQ; Included Angle: 35 degrees; Machining Operations: Copying, External Turning, Facing, Undercutting; Insert Grade: CA6525; Workpiece Material: Stainless Steel, High-Temp Alloy; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
