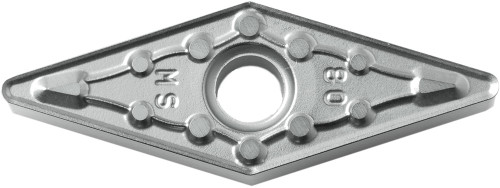

Kyocera Turning Insert VNMG332MS SW05: TWH07632

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWH07632
$25.96

Kyocera ISOI turning insert for high-temp alloys, 3/8 in (9.525 mm) IC, 35 degree diamond shape, negative rake, 4 cutting edges, medium-roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, uncoated. Manufacturer part number TWH07632.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
Uncoated
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/32
Included Angle
35
ANSI Designation
VNMG332MSSW05
Insert Style
VNMG
Machining Operations
Copying, External Turning, Facing, Undercutting
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
332
Insert Grade
SW05
Workpiece Material
High-Temp Alloy
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
IC Size (Fractional)
3/8
Cutting Range
Medium-Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
MS
ISO Designation
VNMG160408MS
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR13-Series_and_SW05_for_Heat_Resistant_Alloys_W.pdf
