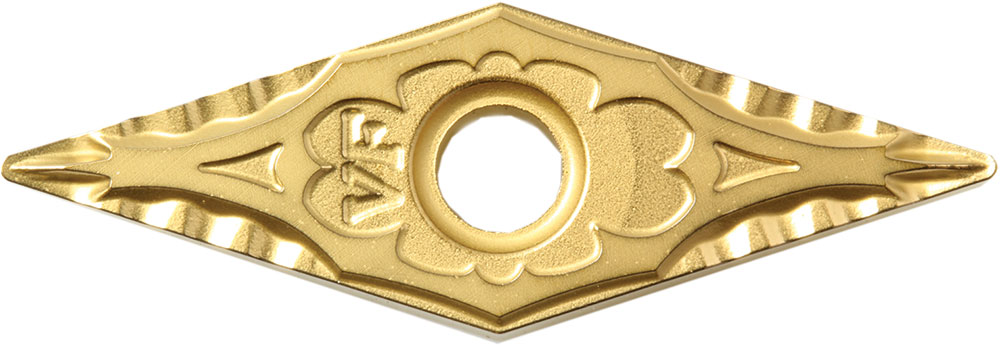

Kyocera VNMG 332VF CA125P Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMK00262
$27.07
Kyocera VNMG 332VF CA125P Grade CVD Carbide, 35 Degree Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/32 Inch
Included Angle
35 degrees
Thickness
3/16 Inch
Style
VNMG
Application
Copying, External Turning, Facing, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
332
ANSI Part Number
VNMG332VFCA125P
ISO Part Number
VNMG160408VF
Rake
Negative
Material Group / Grade
CA125P
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Thickness (Metric)
4.76
Chipbreaker
VF
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
