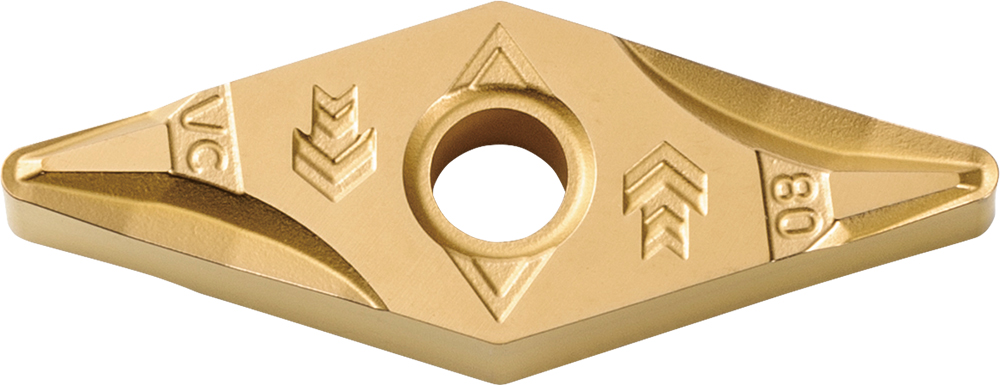

Kyocera Turning Insert VNMG333RVC CA125P: TMK00259
SKU: KYP-TMK00259
Kyocera Turning Insert VNMG333RVC CA525, manufacturer part number TAC07667.
Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 3/64 in (1.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8847168; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 333; Hand Direction: Right; Insert Style: VNMG; Insert Shape: 35 Degree Diamond; ANSI Designation: VNMG333RVCCA525; Chip Breaker Type: VC; ISO Designation: VNMG160412R-VC; Included Angle: 35 degrees; Machining Operations: Copying, External Turning, Facing, Undercutting; Insert Grade: CA525; Workpiece Material: Steel; Coating Process: CVD.
Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
