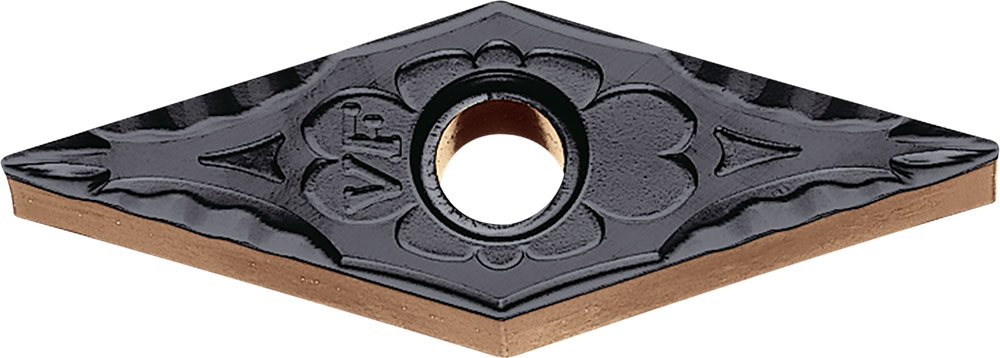

Kyocera Turning Insert VNMG333VF CA515: TAB07652

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAB07652
$27.07

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 35 degree diamond shape, negative rake, 4 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAB07652.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
3/64
Included Angle
35
ANSI Designation
VNMG333VFCA515
Insert Style
VNMG
Machining Operations
Copying, External Turning, Facing, Undercutting
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
333
Insert Grade
CA515
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
1.20
Number of Cutting Edges
4
Coating Process
CVD
IC Size (Fractional)
3/8
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
VF
ISO Designation
VNMG160412VF
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
