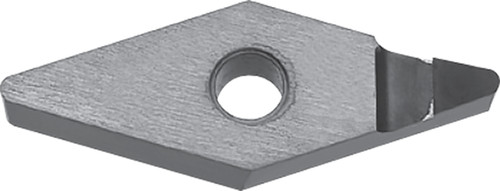

Kyocera Turning Insert VNMM331MNE KPD001: TBR05321

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBR05321
$220.79

Kyocera ISOI turning insert for non-ferrous metals and high-temp alloys, 3/8 in (9.525 mm) IC, 35 degree diamond shape, negative rake, 1 cutting edge, finishing-medium cutting range, screw or clamp insert holding, neutral hand. PCD, uncoated. Manufacturer part number TBR05321.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
PCD
Coating/Finish
Uncoated
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/64
Included Angle
35
ANSI Designation
VNMM331MNEKPD001
Insert Style
VNMM
Machining Operations
Copying, External Turning, Facing, Undercutting
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
331
Insert Grade
KPD001
Workpiece Material
Non-Ferrous, High-Temp Alloy
Rake
Negative
Insert Thickness (Metric)
4.76
Corner Radius (Metric)
0.40
Number of Cutting Edges
1
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
ISO Designation
VNMM160404M-NE
IC Size (Fractional)
3/8
Kyocera Turning Insert VNMM331MNE KPD001: TBR05321
$220.79
