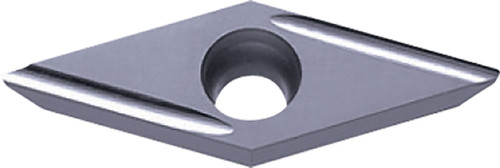

Kyocera VPET 151505FRUSF PR930 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT03928
$39.31
Kyocera VPET 151505FRUSF PR930 Grade PVD Carbide, 11 Degree, Diamond, Positive Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel and (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
35 degrees
Thickness
3/32 Inch
Style
VPET
Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
151505
Old Material Number
8816142
ANSI Part Number
VPET151505FRUSFPR930
ISO Part Number
VPET080202FR-USF
Rake
Positive
Material Group / Grade
PR930
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
2.38
Chipbreaker
USF
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
4.76
Inscribed Circle
3/16 Inch
Pack quantity
10
Kyocera VPET 151505FRUSF PR930 Grade PVD Carbide, Indexable Turning Insert
$39.31
