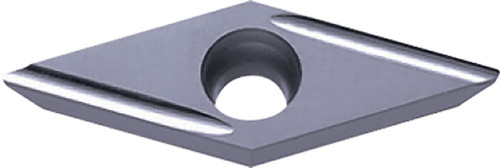

Kyocera Turning Insert VPET22013MFRUSF PR1225: TKE07951

Kyocera Turning Insert VPET22013MFRUSF PR1225, manufacturer part number TKE07951.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 0.0020 in (0.05 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8832012; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 22013; Hand Direction: Right; Insert Style: VPET; Insert Shape: 35 Degree Diamond; ANSI Designation: VPET22013MFRUSFPR1225; Chip Breaker Type: USF; ISO Designation: VPET1103005MFR-USF; Included Angle: 35 degrees; Machining Operations: Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting; Insert Grade: PR1225; Workpiece Material: Stainless Steel, Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT. Series: ISOI. Unit of measure: Inch.
