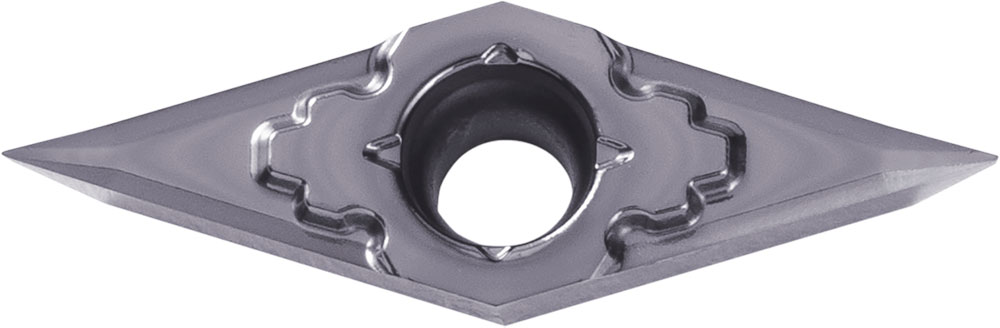

Kyocera VPGT 2202MFPGF PR1705 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLN40141
$39.31
Kyocera VPGT 2202MFPGF PR1705 Grade PVD Carbide, 11 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, and (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel
Included Angle
35 degrees
Thickness
1/8 Inch
Style
VPGT
Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
2202
Old Material Number
8865117
ANSI Part Number
VPGT2202MFPGFPR1705
ISO Part Number
VPGT110301MFP-GF
Rake
Positive
Material Group / Grade
PR1705
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Thickness (Metric)
3.18
Chipbreaker
GF
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
