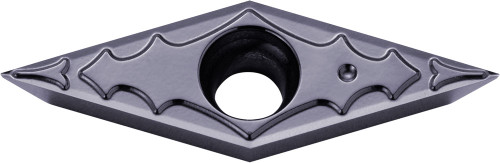

Kyocera VPGT 2205MPCF PR1225 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE08021
$39.31
Kyocera VPGT 2205MPCF PR1225 Grade PVD Carbide, 11 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (M) Stainless Steel and (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Included Angle
35 degrees
Thickness
1/8 Inch
Style
VPGT
Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
2205
Old Material Number
8832029
ANSI Part Number
VPGT2205MPCFPR1225
ISO Part Number
VPGT110302MP-CF
Rake
Positive
Material Group / Grade
PR1225
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
3.18
Chipbreaker
CF
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
Kyocera VPGT 2205MPCF PR1225 Grade PVD Carbide, Indexable Turning Insert
$39.31
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
