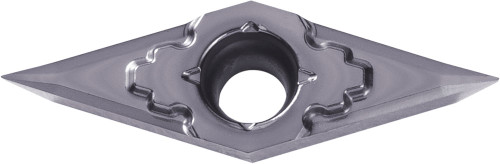

Kyocera VPGT 2205MPCK PR1725 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00418
$39.31
Kyocera VPGT 2205MPCK PR1725 Grade PVD Carbide, 11 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel and (P) Free-Cutting Steel, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
35 degrees
Thickness
1/8 Inch
Style
VPGT
Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
2205
Old Material Number
8863665
ANSI Part Number
VPGT2205MPCKPR1725
ISO Part Number
VPGT110302MP-CK
Rake
Positive
Material Group / Grade
PR1725
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
3.18
Chipbreaker
CK
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
