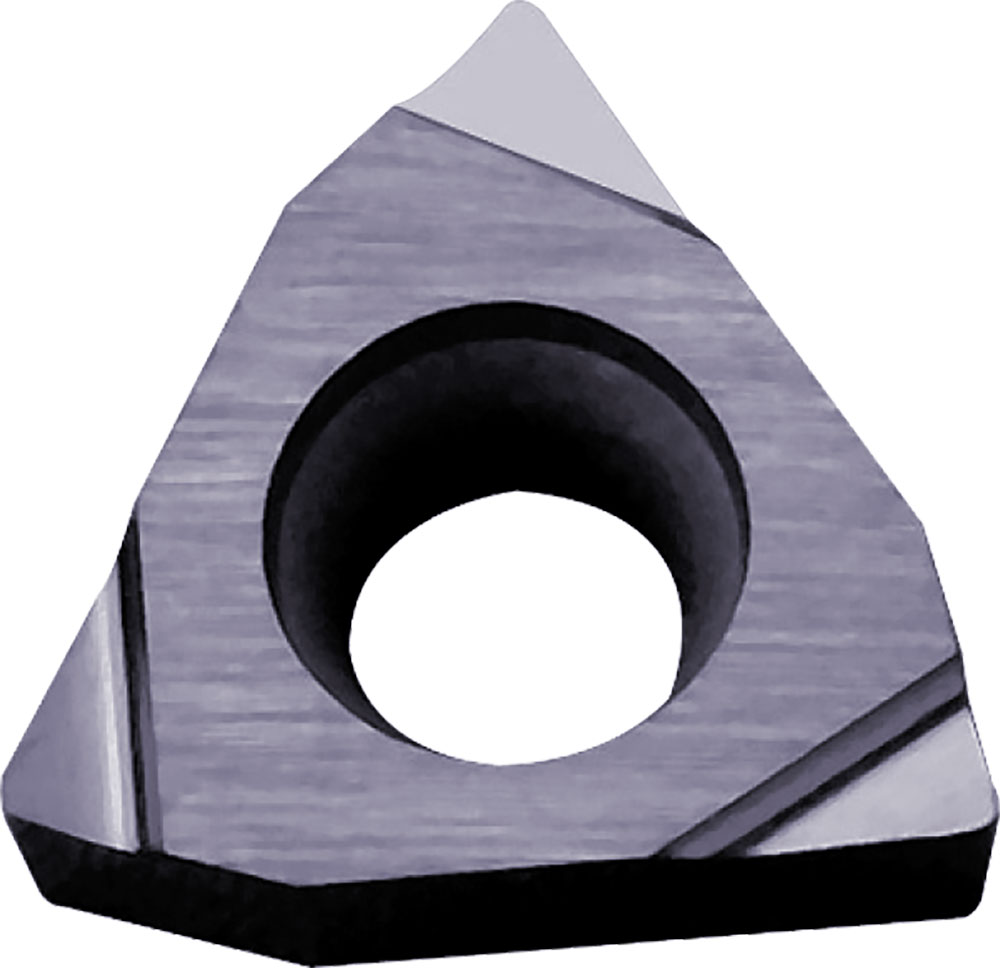

Kyocera WBET 15151MLF PR1535 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC08416
$45.84
Kyocera WBET 15151MLF PR1535 Grade PVD Carbide, 5 Degree, Trigon, Positive Rake Angle, Left-Hand Turning Insert for Light Interruption and Finishing in (S) Heat-Resistant Alloy, (S) Titanium Alloy, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
Corner Radius
1/64 Inch
Included Angle
80 degrees
Thickness
3/32 Inch
Style
WBET
Application
Boring, Internal Facing
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
15151
Old Material Number
8846449
ANSI Part Number
WBET15151MLFPR1535
ISO Part Number
WBET080204ML-F
Rake
Positive
Material Group / Grade
PR1535
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Thickness (Metric)
2.38
Chipbreaker
F
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
4.76
Inscribed Circle
3/16 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR1535_for_Turning.pdf
