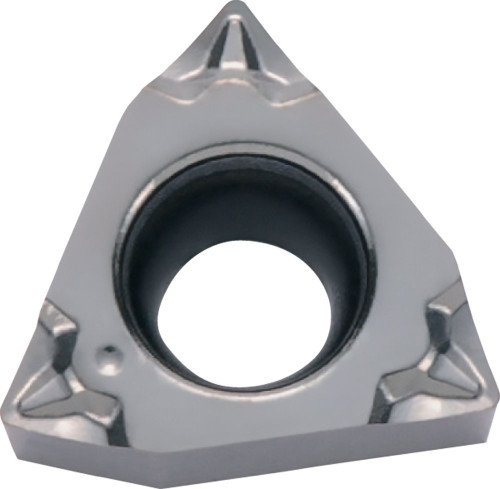

Kyocera WBGT 12102MFPLPF PR1725 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00514
$45.84
Kyocera WBGT 12102MFPLPF PR1725 Grade PVD Carbide, 5 Degree, Trigon, Positive Rake Angle, Left-Hand Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel and (P) Free-Cutting Steel, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
80 degrees
Thickness
1/16 Inch
Style
WBGT
Application
Boring, Internal Facing
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
12102
Old Material Number
8863759
ANSI Part Number
WBGT12102MFPLPFPR1725
ISO Part Number
WBGT060101MFPL-PF
Rake
Positive
Material Group / Grade
PR1725
Corner Radius (Metric)
0.10
Number of Cutting Edges
3
Thickness (Metric)
1.59
Chipbreaker
PF
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
3.97
Inscribed Circle
5/32 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PF_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
