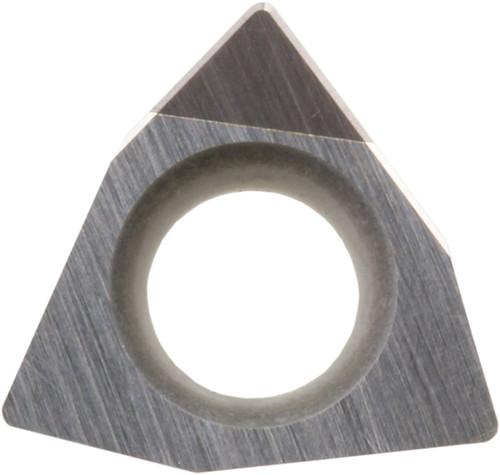

Kyocera Turning Insert WBGW12105T00315LSE KBN25M: TBZ07002

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBZ07002
$62.33

Kyocera Turning Insert WBGW12105T00315LSE KBN25M, manufacturer part number TBZ07002.

Specifications: IC Size: 5/32 in (3.97 mm); Insert Thickness: 1/16 in (1.59 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8826750; Rake: Positive; Number of Cutting Edges: 1; Cutting Range: Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 12105; Hand Direction: Left; Insert Style: WBGW; Insert Shape: 80 Degree Trigon; ANSI Designation: WBGW12105T00315LSEKBN25M; ISO Designation: WBGW060102T00815L-SE; Included Angle: 80 degrees; Machining Operations: Boring, Internal Facing; Insert Grade: KBN25M; Workpiece Material: Hardened Steel; Coating Process: PVD.

Material: CBN. Coating/Finish: MEGACOAT. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
CBN
Coating/Finish
MEGACOAT
IC Size (Metric)
3.97
Included Angle
80
Corner Radius (Decimal)
0.0080
Insert Style
WBGW
Insert Thickness (Fractional)
1/16
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
12105
Old Material Number
8826750
Insert Thickness (Metric)
1.59
Machining Operations
Boring, Internal Facing
Rake
Positive
IC Size (Fractional)
5/32
Corner Radius (Metric)
0.20
Number of Cutting Edges
1
Insert Grade
KBN25M
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
ISO Designation
WBGW060102T00815L-SE
Workpiece Material
Hardened Steel
ANSI Designation
WBGW12105T00315LSEKBN25M
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Coating Process
PVD
