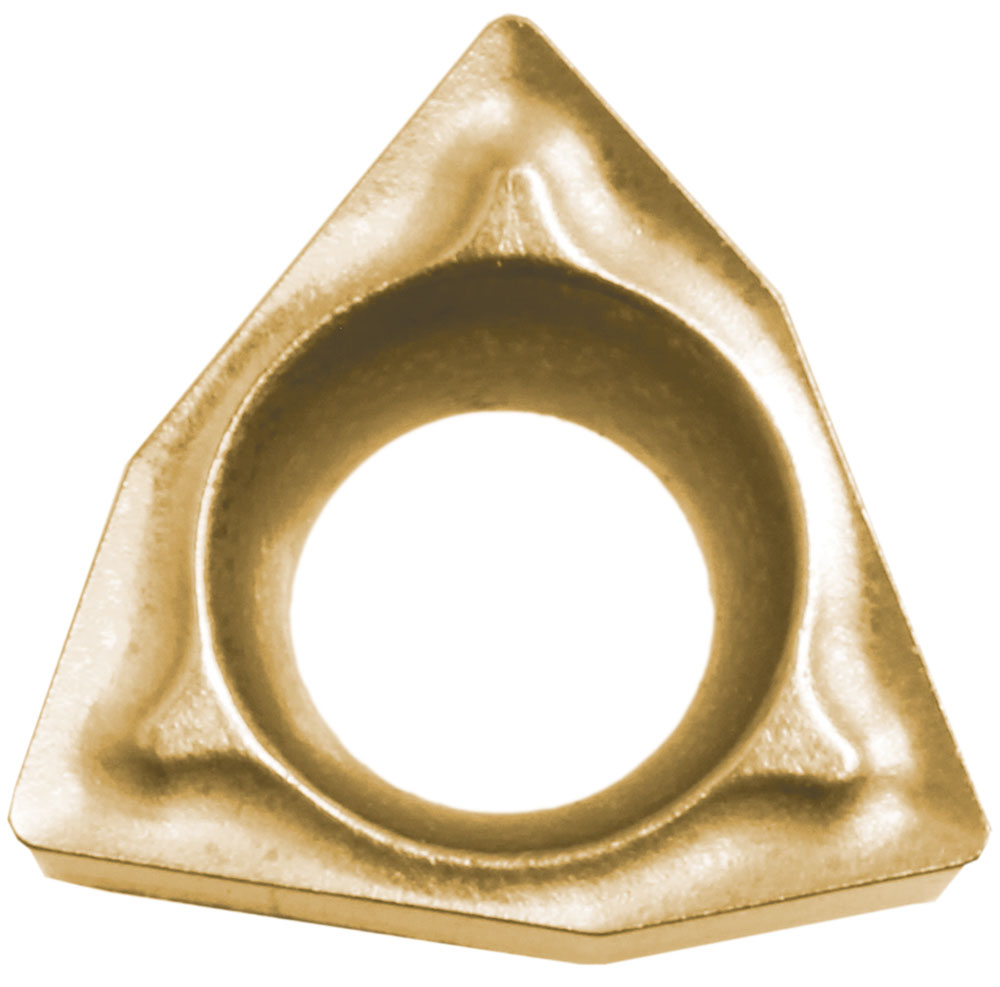

Kyocera WBMT 12105RDP PV730 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLP00531
$27.50
Kyocera WBMT 12105RDP PV730 Grade PVD Cermet, 5 Degree, Trigon, Positive Rake Angle, Right-Hand Turning Insert for Heavy Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
80 degrees
Thickness
1/16 Inch
Style
WBMT
Application
Boring, Internal Facing
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
12105
Old Material Number
8866294
ANSI Part Number
WBMT12105RDPPV730
ISO Part Number
WBMT060102R-DP
Rake
Positive
Material Group / Grade
PV730
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Thickness (Metric)
1.59
Chipbreaker
DP
Cutting Range
Finishing
Usage Classification
Heavy Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
3.97
Inscribed Circle
5/32 Inch
Pack quantity
10
