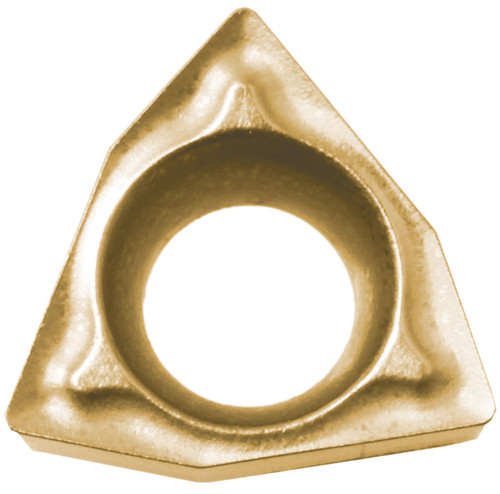

Kyocera Turning Insert WBMT1211LDP CA525: TAC08102

Kyocera Turning Insert WBMT1211LDP CA525, manufacturer part number TAC08102.

Specifications: IC Size: 5/32 in (3.97 mm); Insert Thickness: 1/16 in (1.59 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8839848; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 1211; Hand Direction: Left; Insert Style: WBMT; Insert Shape: 80 Degree Trigon; ANSI Designation: WBMT1211LDPCA525; Chip Breaker Type: DP; ISO Designation: WBMT060104L-DP; Included Angle: 80 degrees; Machining Operations: Boring, Internal Facing; Insert Grade: CA525; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
