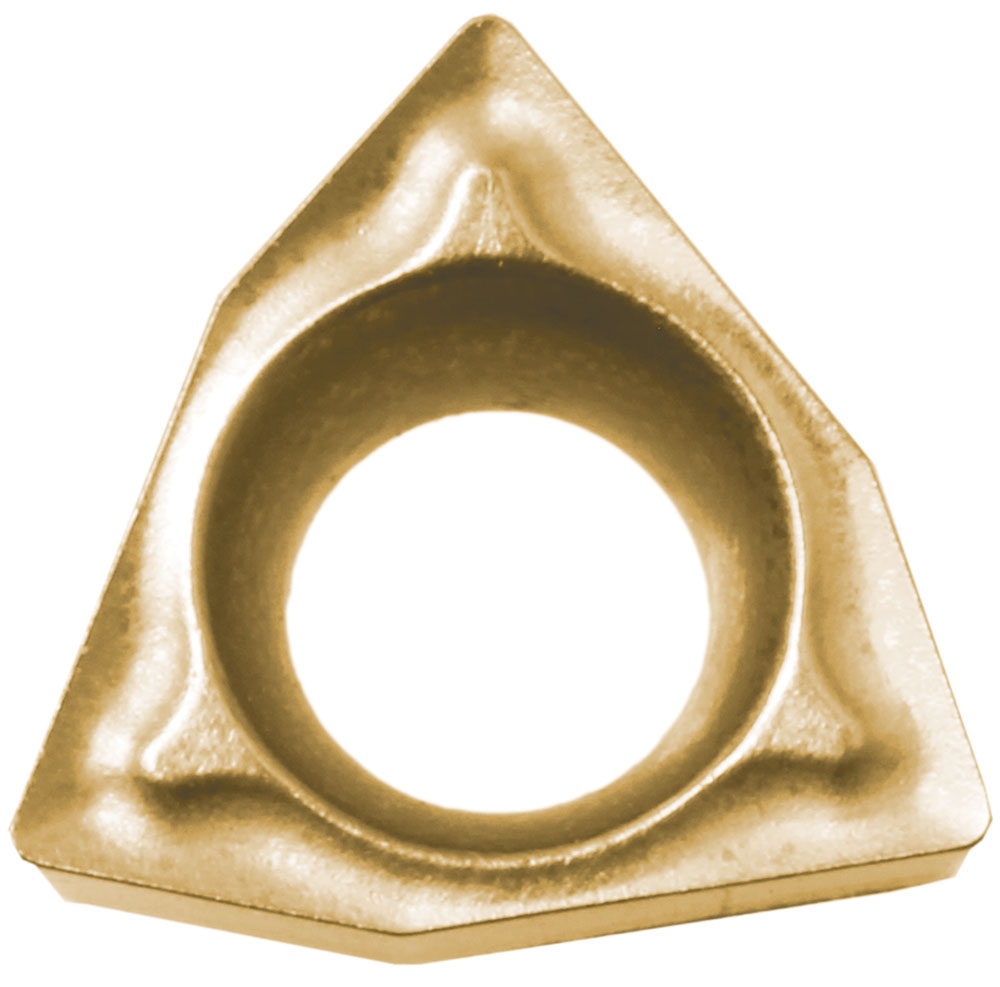

Kyocera Turning Insert WBMT1211RDP PV720: 80 Degree Trigon, 3 Cutting Edges, 1/64" Nose Radius, TLD08503

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD08503
$27.50

Turn, face and profile with this 5/32" IC PV720 grade turning insert.

Kyocera Series ISOI inserts are made for steel and high-temp alloys.

  • Insert style: WBMT
  • Insert shape: 80 Degree Trigon
  • IC size: 5/32"
  • Insert thickness: 1/16"
  • Corner radius: 1/64"
  • Chip breaker type: DP
  • Insert grade: PV720
  • Coating/finish: TiCN
  • Workpiece material: Steel
  • ANSI designation: WBMT1211RDPPV720

Kyocera part number TLD08503.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
TiCN
Insert Thickness (Fractional)
1/16
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
WBMT1211RDPPV720
Insert Style
WBMT
Insert Thickness (Metric)
1.59
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
1211
Machining Operations
Boring, Internal Facing
Insert Grade
PV720
Rake
Positive
IC Size (Metric)
3.97
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Workpiece Material
Steel
ISO Designation
WBMT060104R-DP
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
5/32
Coating Process
PVD
Chip Breaker Type
DP
Pack quantity
10
