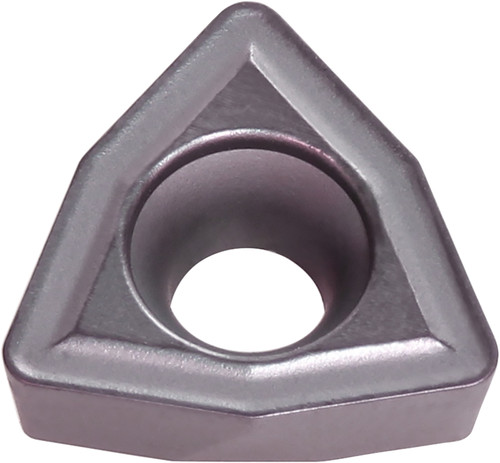

Kyocera WCMT 06T308 PR1230 Grade PVD Carbide, Indexable Drilling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKC09302
$25.58
Kyocera WCMT 06T308 PR1230 Grade PVD Carbide, Right-Hand Drilling Insert for (P) Carbon/Alloy Steel, (P) Tool Steel and (M) Stainless Steel (Holeshot Drill & Coremaster Coredrill)

Specifications

Series
OTMD
Unit of Measure
Fractional
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Tool Steel
Corner Radius (Metric)
0.80
Corner Radius
1/32 Inch
Grade
PR1230
Thickness (Metric)
3.97
Inscribed Circle (Metric)
9.53
Thickness
5/32 Inch
Inscribed Circle Diameter
3/8 Inch
Style
WCMT
Application
Drilling
Shape
80 Degree Trigon
Insert Holding Method
Screw
Size
06T308
Old Material Number
8831591
ANSI Part Number
WCMT06T308PR1230
ISO Part Number
WCMT06T308
Rake
Positive
Number of Cutting Edges
3
Insert Included Angle
80 degrees
Pack quantity
10
