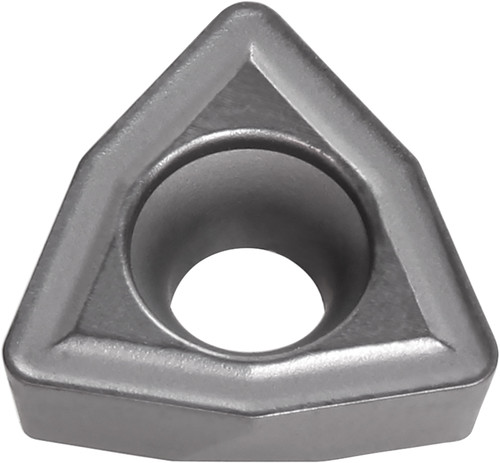

Kyocera WCMX 050308M1A KW10 Grade Uncoated Carbide, Indexable Drilling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-8850517
$22.17
Kyocera WCMX 050308M1A KW10 Grade Uncoated Carbide, Right-Hand Drilling Insert for (N) Non-Ferrous Metals (Holeshot Drill & Coremaster Coredrill)

Specifications

Series
OTMD
Unit of Measure
Fractional
Cutting Direction
Right
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius (Metric)
0.80
Corner Radius
1/32 Inch
Grade
KW10
Thickness (Metric)
3.18
Inscribed Circle (Metric)
7.94
Thickness
1/8 Inch
Inscribed Circle Diameter
5/16 Inch
Style
WCMX
Application
Drilling
Chip Breaker Type
M1A
Shape
80 Degree Trigon
Insert Holding Method
Screw
Size
050308
Old Material Number
8850517
ANSI Part Number
WCMX050308M1AKW10
ISO Part Number
WCMX050308M1A
Rake
Positive
Number of Cutting Edges
3
Insert Included Angle
80 degrees
Pack quantity
10
Kyocera WCMX 050308M1A KW10 Grade Uncoated Carbide, Indexable Drilling Insert
$22.17
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
