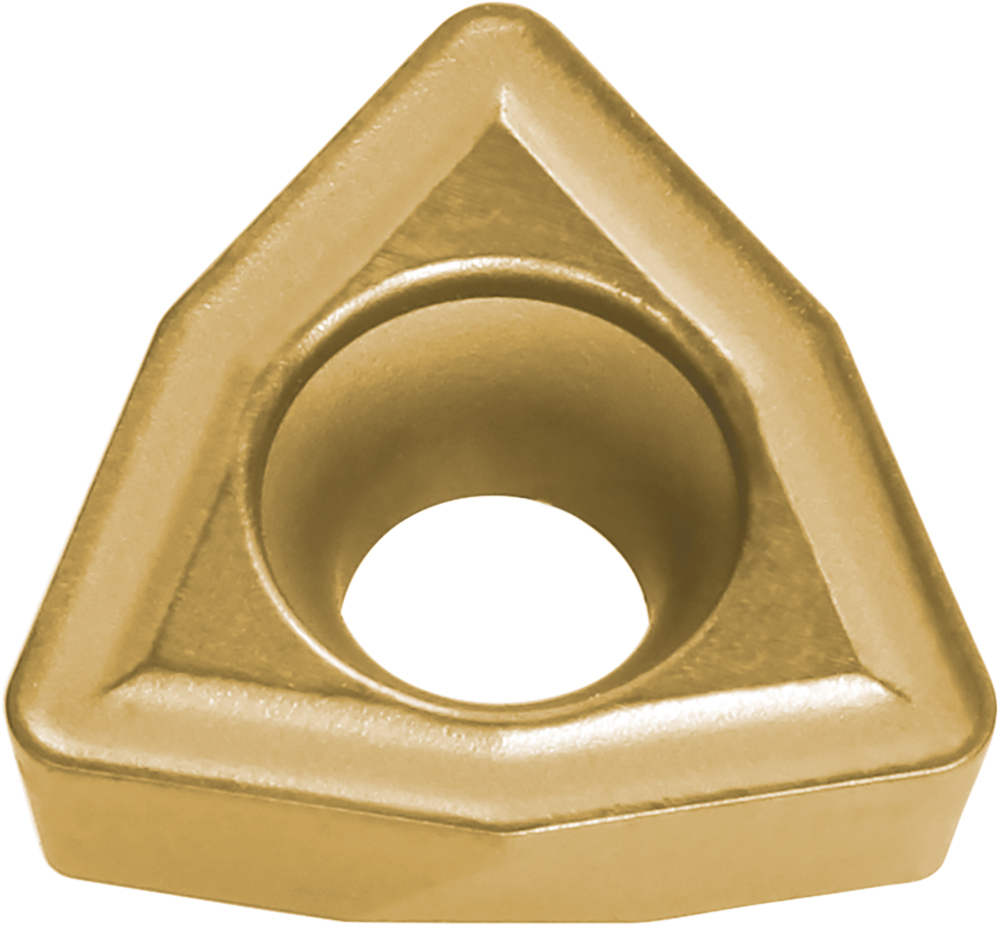

Kyocera WCMX 06T308M1A CA6535 Grade CVD Carbide, Indexable Drilling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-8850611
$22.97
Kyocera WCMX 06T308M1A CA6535 Grade CVD Carbide, Right-Hand Drilling Insert for (M) Stainless Steel and (S) Heat-Resistant Alloy (Holeshot Drill & Coremaster Coredrill)

Specifications

Series
OTMD
Unit of Measure
Fractional
Cutting Direction
Right
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(M) Stainless Steel
Corner Radius (Metric)
0.80
Corner Radius
1/32 Inch
Grade
CA6535
Thickness (Metric)
3.97
Inscribed Circle (Metric)
9.53
Thickness
5/32 Inch
Inscribed Circle Diameter
3/8 Inch
Style
WCMX
Application
Drilling
Chip Breaker Type
M1A
Shape
80 Degree Trigon
Insert Holding Method
Screw
Size
06T308
Old Material Number
8850611
ANSI Part Number
WCMX06T308M1ACA6535
ISO Part Number
WCMX06T308M1ACA6535
Rake
Positive
Number of Cutting Edges
3
Insert Included Angle
80 degrees
Pack quantity
10
Kyocera WCMX 06T308M1A CA6535 Grade CVD Carbide, Indexable Drilling Insert
$22.97
