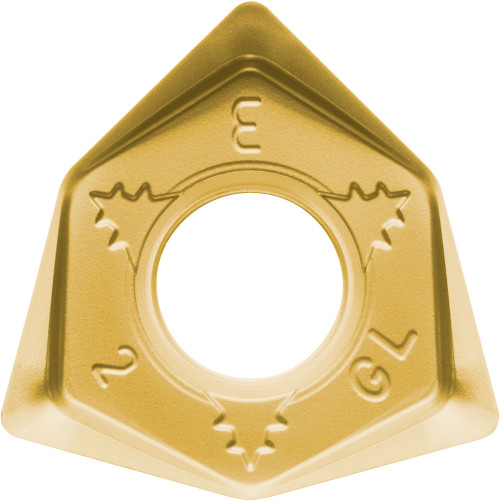

Kyocera WNEU 080608ENGL CA6535 Grade CVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMA09313
$37.64
Kyocera WNEU 080608ENGL CA6535 Grade CVD Carbide, Trigon, Negative Rake Angle, Neutral Milling Insert for Roughing in (M) Martensitic Stainless Steel and (S) Heat-Resistant Alloy

Specifications

Series
MFWN
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(M) Martensitic Stainless Steel
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
CA6535
Inscribed Circle (Metric)
14.02
Thickness
6.65 mm
Style
WNEU
Application
Facing, Shouldering, Slotting
Thickness (Decimal)
0.26
Shape
80 Degree Trigon
Insert Holding Method
Screw
Old Material Number
8838237
ANSI Part Number
WNEU080608ENGLCA6535
ISO Part Number
WNEU080608EN-GL
Rake
Negative
Number of Cutting Edges
6
Insert Size
080608
Chipbreaker
EN-GL
Cutting Range
Roughing
Insert Included Angle (Degree)
80 degrees
Inscribed Circle (Decimal)
0.55
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFWN_M-Six.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
