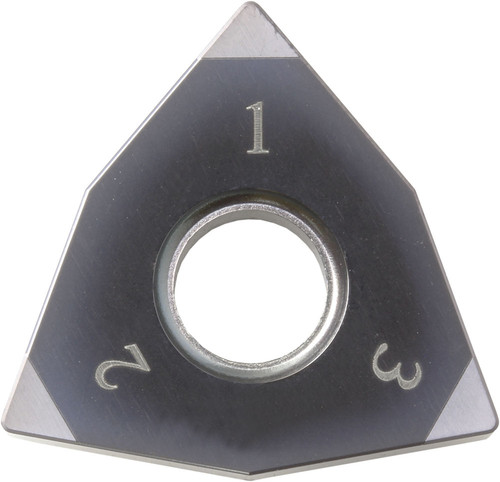

Kyocera WNGA 431S00525ME KBN05M Grade CBN, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBN07201
$103.30
Kyocera WNGA 431S00525ME KBN05M Grade CBN, 0 Degree, Trigon, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (H) Hardened Materials

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
CBN
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Corner Radius
1/64 Inch
Included Angle
80 degrees
Thickness
3/16 Inch
Style
WNGA
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
431
Old Material Number
8832760
ANSI Part Number
WNGA431S00525MEKBN05M
ISO Part Number
WNGA080404S01225ME
Rake
Negative
Material Group / Grade
KBN05M
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Thickness (Metric)
4.76
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/KBN05M_W.pdf
Kyocera WNGA 431S00525ME KBN05M Grade CBN, Indexable Turning Insert
$103.30
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
