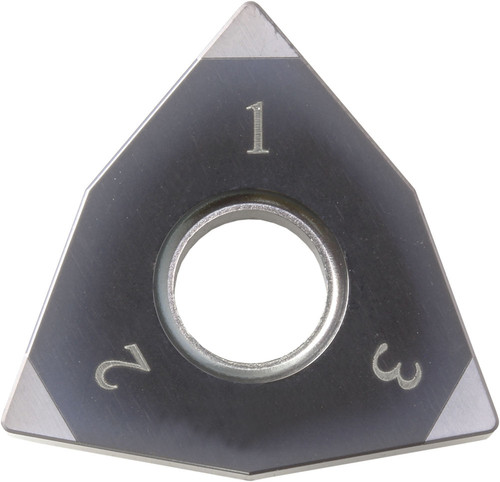

Kyocera Turning Insert WNGA432S00525ME KBN25M: TBZ07202

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBZ07202
$103.30

Kyocera ISOI turning insert for hardened steel, 1/2 in (12.70 mm) IC, 80 degree trigon shape, negative rake, 3 cutting edges, medium cutting range, screw or clamp insert holding, neutral hand. CBN, MEGACOAT (PVD) coating. Manufacturer part number TBZ07202.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
WNGA432S00525MEKBN25M
Insert Style
WNGA
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
432
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
KBN25M
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Workpiece Material
Hardened Steel
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
PVD
ISO Designation
WNGA080408S01225ME
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
