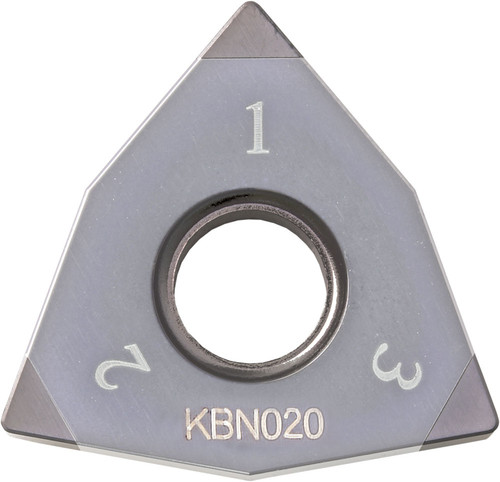

Kyocera WNGA 432S00730MET KBN020 Grade CBN, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TFC00123
$169.37
Kyocera WNGA 432S00730MET KBN020 Grade CBN, 80 Degree Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous-Interrupted Machining of (H) Hardened Materials

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
CBN
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Corner Radius
1/32 Inch
Included Angle
80 degrees
Thickness
3/16 Inch
Style
WNGA
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
432
ANSI Part Number
WNGA432S00730METKBN020
ISO Part Number
WNGA080408S01730MET
Rake
Negative
Material Group / Grade
KBN020
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Thickness (Metric)
4.76
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KBN020_Coated_CBN_for_Hardened_Material.pdf
