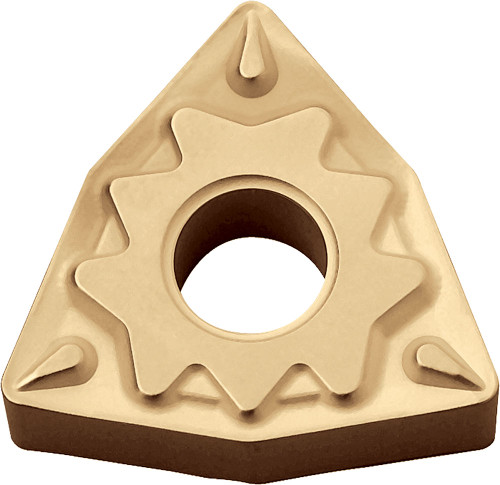

Kyocera Turning Insert WNMG3251HQ CA530: TAD08300

Kyocera Turning Insert WNMG3251HQ CA530, manufacturer part number TAD08300.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8840986; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Heavy Interruption; Insert Size: 3251; Hand Direction: Neutral; Insert Style: WNMG; Insert Shape: 80 Degree Trigon; ANSI Designation: WNMG3251HQCA530; Chip Breaker Type: HQ; ISO Designation: WNMG06T304HQ; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: CA530; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
